The biogas plant in Hammel near Aarhus can now consider its latest tank as the biggest glycerin tank in Denmark. It contains 4.500 cu m glycerin in a fully insulated digester made from long lasting stainless steel.

Related Company

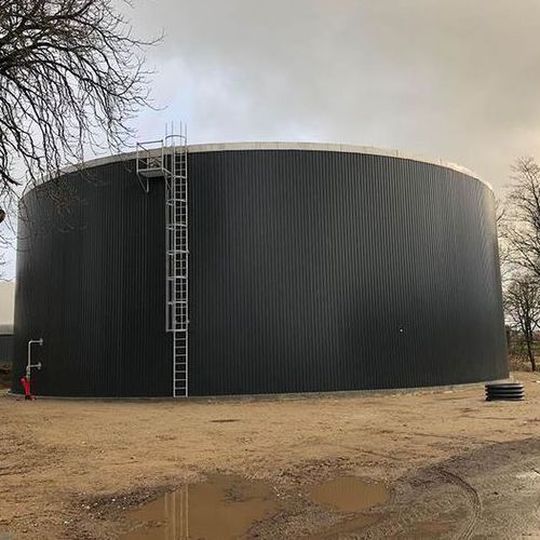

The diameter of the new biogas tank is 25 m with a height of almost 9 m and is constructed with stainless steel shell plates in a segment-like design.
The diameter of the new biogas tank is 25 m with a height of almost 9 m and is constructed with stainless steel shell plates in a segment-like design.
(Source: Erich Stallkamp Esta)

Denmark – The project is part of an existing biogas plant with a power of 2 MW. The diameter of the new biogas tank is 25 m with a height of almost 9 m. It is constructed with stainless steel shell plates in a segment-like design. At the height of almost 9 m, seven rings of the shell plates are necessary. The lower five rings are made from stainless steel 1.4462 and the upper two rings from stainless steel 1.4571 to prevent it from corrosion.

The roof

The digester is covered with a stainless steel roof pillared by a central support. Being composed of an inner and outer screwed element, the outer ring is attached to the top of the tank, whereas, the inner ring is posed higher. Thus, a decline of 10° occurs. The roof is designed for insulation and cladding. It is completed by two inspection openings.

The accessories

Equipped with a heating system and full insulation, it has the basic accessories of a digester. Moreover, the biggest glycerin tank in Denmark has two gas-tight wall bushings, two working platforms with ladders and three powerful submersible motor agitators in stainless steel.

The substance glycerin

The basis for the fermentation process is glycerin with a pH value between 3,5 and 8. It is a waste product derived from the production of biodiesel. Having a density of 1,3 kg/l, the glycerin is heated up to 52°. Glycerin is considered to be the most valuable input for the fermentation process because the bacteria transform almost all the glycerin. Thus, there is no fermentation residues left. A comparison between the output of corn and glycerin illustrate the energetic value of glycerin. General guidance levels say that one tonne of corn yields to 200-250 cu m gas, whereas, glycerin yields to 1.000 cu m gas.

The construction

The most crucial part of the project was the construction phase due to the enormous size of the tank. After the assembly of the first ring including the roof, the whole digester was electrically lifted up. 37 pillars were used to lift up the first ring and another four we needed to lift up the central support as well. Then the second ring was assembled and the tank was lifted several times until the seventh ring was constructed.
