Grinders Twin Shaft Grinders for Flow Rates Up to 400 m³/h

Editor: Ahlam Rais

The N.Mac twin shaft grinder from Netzsch is available with a channel or inline housing. The versatile grinder is now available in further sizes for flow rates up to 400 m³/h.

Related Companies

The N.Mac twin shaft grinder from Netzsch is available with a channel or inline housing. The versatile grinder is now available in further sizes for flow rates up to 400 m³/h.

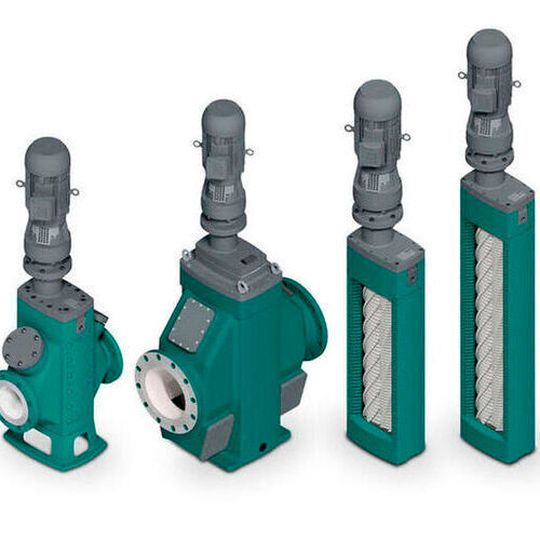

The N.Mac twin shaft grinder from Netzsch is available with a channel or inline housing. The versatile grinder is now available in further sizes for flow rates up to 400 m³/h.
(Source: Netzsch)

The N.Mac twin shaft grinder is designed for breaking down a variety of different materials and is ideal for wastewater treatment, biogas and biomass plants, food and animal processing and many other waste and industrial applications, states the company.

The grinder can be installed upstream of a pump (inline version) or above the feeding screw of a hopper pump (channel version) or in any effluent channel. According to the firm, the inline version of the grinder is available in 3 sizes and can handle a maximum flow rate of up to 350 m³/h. The channel version of this grinder is available in 4 sizes, designed for a maximum flow rate of up to 400 m³/h. For applications with even higher flow rates, several grinders can be run in parallel, additionally allowing parts of the system to be serviced during operation.

Installation of several grinders in sequence allows a gradual reduction of the particle size. Besides knives which can be removed in a cartridge for quick and easy maintenance, the grinder is equipped with flushed and lubricated mechanical seals for perfect dry-running capability, mentions the company. The cartridge version of the mechanical seal, a leak-free combination of mechanical seal and cartridge housing, can be serviced and replaced quickly and easily. An optional control panel allows the automatic reversal of the running direction to release stuck media.

Specialist Book „Heat Transfer Technique“The comprehensive standard work „Heat Transfer Technique“ offers not only a detailed and well-founded presentation of the basics of heat transfer technique, but also shows the latest state of the art and the latest regulations in the use of organic fluids. Thematically, the book is rounded off with an overview of property data of organic heat transfer fluids as well as many use cases from practical experience.

The twin shaft grinder features modular assemblies and replaceable components allowing all parts to be serviced and maintained without any restrictions.

Versions with up to 6 cutting cartridges per shaft are available. The cartridges are pre-assembled and delivered with spacers and knives already positioned for easy installation. Different materials can be selected depending on the application. The cycloidal gearboxes are maintenance-free for up to 2 years, adds the firm. The grinder is supplied with different cutting tool sizes for different shaft speeds as a standard to optimise the gripping and the cutting process.

Accessories include a control panel for guaranteed operation and system safety, a cutting cartridge cleaner for a permanently clear cutting chamber and unrestricted flow of liquid as well as a drive shaft extension to elevate the electric motor above the liquid level.
