Brau Beviale 2019 Sine Pumps for High Viscous Syrup in Drinks Production

Editor: Ahlam Rais

At Brau Beviale, Watson-Marlow showcased its specialist range of technology for the drinks industry, including the Sine pump Certa. The pump’s high performance and versatility has been illustrated with the mixer Turbo Digi which is manufactured by Famix-Maschinenbau. This system uses Certa for metering syrup, providing gentle transfer and excellent CIP-capabilities.

Related Vendors

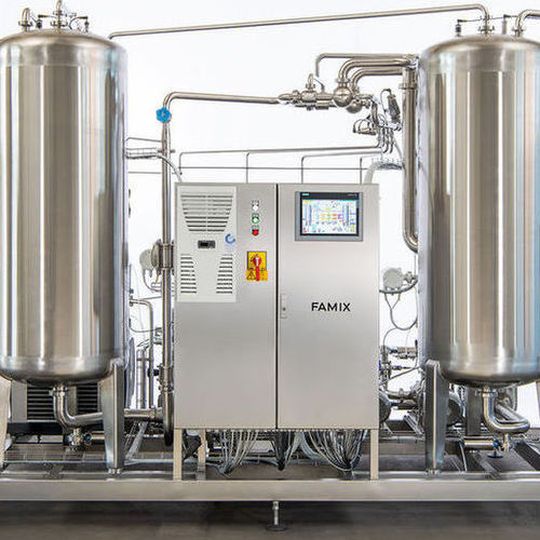

Illustrating Sine pump capabilities, Watson-Marlow’s stand at Brau Beviale featured the mixer Famix Turbo Digi by Famix Maschinenbau.
Illustrating Sine pump capabilities, Watson-Marlow’s stand at Brau Beviale featured the mixer Famix Turbo Digi by Famix Maschinenbau.
(Source: Watson-Marlow)

Sine pumps are positive displacement pumps. The rotation of sinusoidal rotors creates four equal circumferential chambers, which are displaced as a whole; the chamber volume does not change. The medium is gently carried from the inlet port to the outlet port. The seal from the pressure side to the suction side is guaranteed by a plastic gate located on the rotor. This simple, yet powerful design makes Sine pumps the perfect choice for transferring high-viscosity liquids, easily able to cope with viscosities up to 8 million centipoises, states the company.

For the drinks industry, this pump principle offers gentle pumping in a great variety of applications. “In the drinks industry, sine pumps are used in all applications, where high viscous media need to be transferred gently, with low pulsation and low shear”, says Watson-Marlow Commercial Manager Christian Paschen. This includes unloading frozen orange juice concentrate from tanker ships, as well as transferring yeast in breweries or handling delicate whey or cream in dairy applications.

Famix Turbo Digi: Innovative all-in-one solution and individually customised

Illustrating Sine pump capabilities, the company’s stand in Nuremberg featured the mixer Famix Turbo Digi by Famix Maschinenbau. This system for the production of sophisticated drinks combines deaeration, mixing and carbonation in one compact system. The mixing ratios are controlled by a high-precision digital flow meter system. Thanks to the patented Famix carbonation and mixing device, the manufacture of drinks either still or sparkling is possible, adds the firm.

Specialist Book „Heat Transfer Technique“The comprehensive standard work „Heat Transfer Technique“ offers not only a detailed and well-founded presentation of the basics of heat transfer technique, but also shows the latest state of the art and the latest regulations in the use of organic fluids. Thematically, the book is rounded off with an overview of property data of organic heat transfer fluids as well as many use cases from practical experience.

The mixer uses a Certa Sine pump as syrup pump. “Metering the syrup is a crucial step in the process”, explains Herbert Falterbaum, Managing Director at Famix-Maschinenbau. Syrup is not only the most expensive raw material in producing mixed drinks, it is also key to maintain end-product quality and consistency.

The Sine pump masters this task with ease: The volumetric positive displacement pump whose flow rate is directly proportional to the speed is flexibly adapting the amount of syrup to the desired mixing ratio and is pumping the syrup gently, with low shear and virtually no pulsation. The simple but innovative design with just one rotor, one shaft and one seal simplifies maintenance. “Moreover, the pump’s excellent hygienic and CIP capabilities, predestine the pump for use in mixer systems such as our Turbo Digi or our multi-stream system Turbo Digi S”, says Herbert Falterbaum, Managing Director at Famix. “An additional advantage is that various viscosities can be handled with the one pump.”

The Sine pump reduces the time for CIP cleaning cycles, minimising downtime while offering maximum hygiene for food and beverage applications. All contact parts on the pump are FDA and EC1935/2004 compliant. Providing EHEDG Type EL Class 1 Aseptic certification, the Sine pump can be used in aseptic processes and is bacteria tight without requiring additional steam ports, opines the company.

Further advantage: The Sine pump offers significant energy benefits compared to less-efficient pumps. Depending on the application, power consumption is reduced by up to 50 %, mentions the firm. The Sine pump is available in seven different sizes offering flows from 100 l/h to 99,000 l/h.
