Weighing Solutions New Integrated Series for Process Weighing Applications

| Editor: Ahlam Rais

BLH Nobel recently introduced its Tank Mount Series of weighing equipment for process weighing applications. The new series includes three different fully standardised weigh modules with off-the-shelf availability in capacities up to 200 tonnes and a variety of suitable junction boxes and instruments.

Related Companies

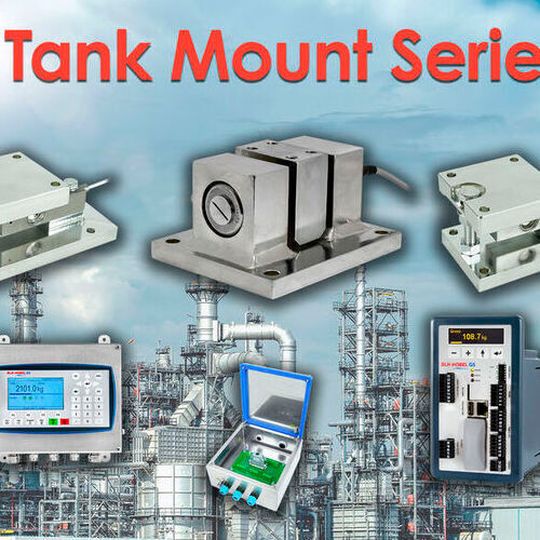

The new Tank Mount Series includes three different fully standardised weigh modules with off-the-shelf availability in capacities up to 200 tonnes.
The new Tank Mount Series includes three different fully standardised weigh modules with off-the-shelf availability in capacities up to 200 tonnes.
(Source: VPG)

The series is an integrated solution for accurate and repeatable weighing of materials for a range of applications such as large silos, vessels or small ingredient storage bins as well as clean-in-place batching processes. Known for its customisable, high-accuracy, smart weighing solutions, BLH Nobel specialises in process weighing. The Series, which is designed for end users as well as system integrators and OEMs looking for a cost competitive solution, consists of two low and one high capacity range weigh modules with mv/V output:

• With capacities up to 5 tonnes, the metric series weigh module and its imperial counterpart Econo Mount weigh module are well suited for general industrial applications that require retrofitting on existing structures or converting hoppers into a scale, states the company. The weigh modules are rated IP 67 or better as a standard, with Atex, FM, NemA4, Oiml and NTEP, Class III and IIIL, certified versions available as an option.

• With the KDH5 weigh module the new Series covers larger capacity needs up to 200 tonnes at accuracy levels of 0.075 % of rated output. Its compact and robust mechanical design features an integrated tilt guard for easy installation. The weigh module is ideally suited for heavy silo weighing applications or weigh bridges, and offered as Atex, Iecex or FM approved versions at no additional cost, adds the firm. Higher capacities and EN 1090 compliant versions are also available.

Specialist Book „Heat Transfer Technique“The comprehensive standard work „Heat Transfer Technique“ offers not only a detailed and well-founded presentation of the basics of heat transfer technique, but also shows the latest state of the art and the latest regulations in the use of organic fluids. Thematically, the book is rounded off with an overview of property data of organic heat transfer fluids as well as many use cases from practical experience.

The company offers a variety of suitable junction boxes and instruments to provide complete weighing solutions in a one-stop-shop. For example, the Win5 weigh indicator is well suited for simple applications which can benefit from its stainless steel enclosure, the high-contrast 6-digit LED display and the operating pushbuttons that support tare weight and zero settings of empty vessels.

The G5 Din Rail Mount satisfies advanced process weighing and control instrument needs. Available as a Din Rail version with integrated display and functional keypad, easy navigation and control directly at the production facility is supported. The modular hardware of the G5 instrument family supports a wide variety of communication options via Ethernet, RS485, USB, Fieldbus and analog output - for full flexibility, concludes the firm.

(ID:46839021)
