Vacuum Pumps New Dry Rotary Vane Vacuum Pumps

Source: Press release Atlas Copco Reading Time: 2 min

Related Vendors

Atlas Copco has introduced its new series of DVS vacuum pumps. These dry rotary vane pumps are oil-free and also ensure an emission-free, quiet operation. It can be used across a wide range of applications such as packaging and pneumatic conveying processes, medical systems and analytical equipment, as well as in pick and place.

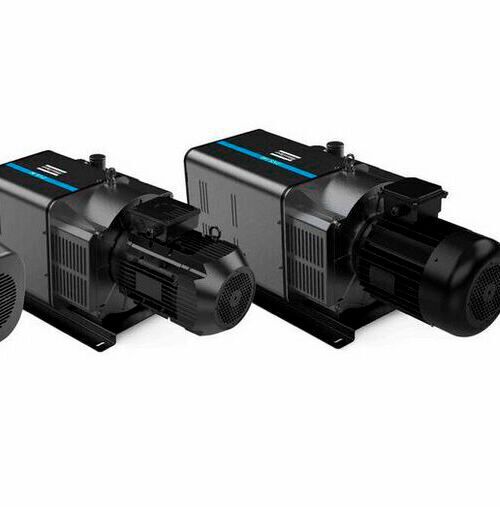

The new dry rotary vane vacuum pumps of the DVS series from Atlas Copco.
The new dry rotary vane vacuum pumps of the DVS series from Atlas Copco.
(Source: Atlas Copco)

Nowadays, a modern vacuum technology must convince users in their everyday operations with features such as sustainability, performance and ergonomics. Atlas Copco has developed its new DVS vacuum pump series with a focus on this requirement profile. The result: the DVS models are oil-free, dry rotary vane pumps that guarantee emission-free, quiet operation and do not contaminate the processes, states the company.

High efficiency at competitive costs

According to the firm, this makes them ideally suited for a wide range of applications, and they are used in packaging and pneumatic conveying processes, medical systems and analytical equipment, as well as in Pick and place for several automated industries. In these work processes, the dry rotary vane pumps offer their users specific advantages: The DVS models are quiet, low-wear and energy-saving and take up very little space. They are predestined for applications in which high efficiency must be achieved at competitive costs, adds the company.

Proven functional principle, robust construction

This is achieved on the one hand by the proven functional principle of the rotary vane pump and on the other hand by the use of robust materials. For example, a rotor with graphite blades rotates inside the DVS pumps. The centrifugal forces press the vanes against the inside of the housing wall and hermetically seal the chamber for a safe, uninterrupted operating vacuum. Thanks to the high-quality graphite alloy, the vacuum can be generated with minimal friction losses, explains the firm.

Air cooler manages temperature profile

The efficient pump mechanism and the design ensure minimal wear – and this in turn leads to long maintenance intervals and easy servicing of the DVS. In addition, the vacuum pumps are thus designed for maximum operating times, explains the company. The temperature management also contributes to this: To reduce the temperature of the discharged air, the exhaust air is passed through an air cooler.

Interplay of proven components

The DVS series is also equipped with an inlet filter, non-return valve, exhaust silencer, a noise-containing canopy and an energy-efficient IE3 electric motor. The bottom line is that the interaction of these components forms the technological basis for a reliable pump with maximum vacuum performance and lower life cycle costs. The dry rotary vane vacuum pumps of the DVS series are available with a nominal suction volume flow of 5 m3/h to 140 m3/h and an ultimate vacuum of up to 120-150 mbar(a). For higher flow rates, the company recommends its dry claw vacuum pumps and systems of the DZS series.

Important advantages of the DVS series at a glance

  • The DVS series ensures clean, emission-free operation and no contamination of the process.
  • Highly resistant graphite blades ensure durability, low wear and easy maintenance.
  • Proven and reliable design principle
  • DVS series is suitable for harsh industrial applications due to its low noise level and small footprint.
  • Long service intervals, easy maintenance due to modular design and simple, efficient pump mechanism construction.
  • Air-cooled vacuum pumps with direct drive designed for oil-free vacuum operation.
