Conveyor Belt Monitoring New Belt Rip Detection System Detects Longitudinal Slitting Early On

Editor: Marcel Dröttboom

Longitudinal slitting in conveyor belts can be costly. Sharp objects are always ending up on the conveyor belt together with the materials conveyed, especially in the mining industry, in wood processing, or in recycling plants. With a new conveyor belt monitoring solution, extensive damage can be prevented.

Related Companies

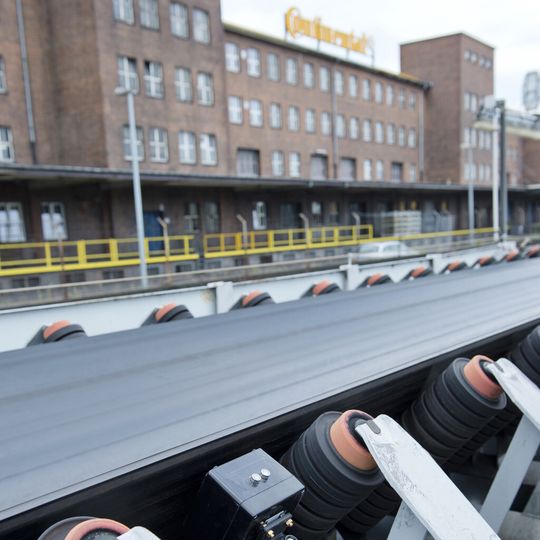

The a new belt rip detection system by Contitech detects longitudinal slitting early on and prevents extensive damage.
The a new belt rip detection system by Contitech detects longitudinal slitting early on and prevents extensive damage.
(Picture: Contitech)

If sharp objects fall in an unfortunate position during belt loading, they may get caught up and split the moving conveyor belt longitudinally. In the worst case scenario, the belt can be written off completely. More protection against failures and expensive re-pairs is provided by the new electronic monitoring system Contiprotect belt rip detection, which has only been on the market for a short time now. It detects longitudinal slitting early on, minimizes damage, and thus cuts cost and reduces the accident risk. This makes it possible for the conveyor belts to be used even longer and therefore contribute to reducing operating costs and protecting the environment.

Automatic Stop Protects Conveyor Belt

Monitoring takes place via conductor loops, which are vulcanized into the conveyor belt. These loops transmit a high-frequency signal between a transmitter and receiver. If a loop is damaged, the signal will break down on the receiver end. The system control then stops the conveyor belt automatically. How long the system needs to come to an emergency stop is deter-mined by the distance between the conductor loops, which can vary between 20 and 50 m. During an initial learning cycle, these distances are recognized and saved by the system.

The new monitoring system is also extremely easy to use. “All the signal sequences can be called up electronically so that, if necessary, one can conclude from them about the quality of the loops. An Ethernet connection means that the system can be controlled via a PC and also via the Internet,” explains Dr. Andreas Jungk, application engineer at the Contitech Conveyor Belt Group. Many of the systems allow Contitech specialists to connect to the system on request to carry out remote maintenance. All of the components used in the Contiprotect belt rip detection system are extremely robust, which enables them to meet the high demands of the mining and bulk material industries.
