Pathbreaking Solution Hyflexfuel Uses Hydrothermal Liquefaction to Produce Biocrude

Editor: Ahlam Rais

Hyflexfuel is an EU funded research project which has produced biocrude from various biomasses. The Aarhus University utilized the hydrothermal liquefaction (HTL) process at its pilot plant in Denmark to produce the biocrude.

Related Vendors

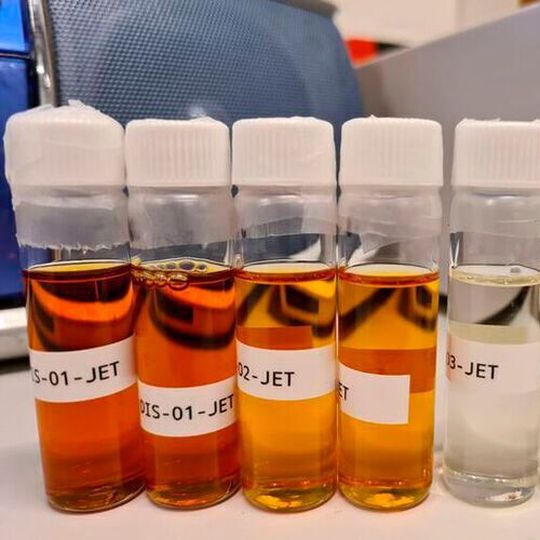

Sustainable aviation fuel components produced from the HTL of selected biomass and subsequent catalytic hydrotreating.
Sustainable aviation fuel components produced from the HTL of selected biomass and subsequent catalytic hydrotreating.
(Source: Daniele Castello, Aalborg University)

München/Germany – The EU funded research project Hyflexfuel recently succeeded to produce biocrudes via hydrothermal liquefaction (HTL) from a variety of biomasses, including sewage sludge, food waste, manure, wheat straw, corn stover, pine sawdust, miscanthus and microalgae in a pilot-scale continuous HTL plant at Aarhus University (Denmark).

“It has been a real milestone for Hyflexfuel to demonstrate biocrude production from such a variety of feedstocks in the hundreds of kg scale,” says Patrick Biller, who leads the pilot-scale HTL research at Aarhus University. Biocrudes from three representative feedstocks, Spirulina (micro-algae), sewage sludge, and wheat straw, were further upgraded to a mixture of hydrocarbon fuels at Aalborg University (Denmark).

Analyses of the kerosene fractions of the upgraded biocrude show promising compositions for use as an aviation fuel.

“The production of HTL fuels from three different feedstock classes shows the flexibility of the process,” says project coordinator Valentin Batteiger of Bauhaus Luftfahrt (Germany), “Meeting jet fuel specifications is an appropriate target to validate that high-performance transportation fuels can indeed be produced from a broad range of residue and waste streams via hydrothermal liquefaction.”

Hyflexfuel, Process overview.
Hyflexfuel, Process overview.
(Source: Bauhaus Luftfahrt)

HTL as key-enabler for sustainable biofuel production

The decarbonization of the transportation sector will require large volumes of renewable fuels. So far, renewable diesel and jet fuels are mainly derived from plant oils, but the EU Renewable Energy Directive limits the use of biofuel from food and feed crops since they do not meet sustainability requirements when produced at large scale. For the future, it will be important to commercialize advanced biofuel conversion technologies, which utilize a broader and more sustainable feedstock base.

Watch the video here:

The HTL process

Hydrothermal liquefaction (HTL) is an upcoming biofuel technology to produce transportation fuels from a broad variety of bio-wastes and other biomasses. HTL has several key-advantages, of which the most important are:

Flexible production potential: The HTL conversion technology taps into a huge global bio-resource with local variety of primary biomasses. The technology is compatible with a broad variety of organic wastes and residues, lignocellulosic energy crops or aquatic biomasses and can adapt to specific regional feedstock availabilities.

Thanks to the expertise of several project partners, Hyflexfuel proved that HTL biocrudes can be successfully upgraded to drop-in fuels in an industrially-relevant environment, achieving hundreds of hours of continuous operations

Daniele Castello of Aalborg University

Cost-effectiveness: It can produce advanced biofuels, from marine fuels to kerosene, potentially at lower cost than most competing renewable fuel pathways.

Sustainability:The HTL technology has the potential to produce fuels with a low carbon footprint over the entire life cycle, without competing with food and feed production. It has the potential to recycle waste streams and thereby contribute to a more circular economy.

The pilot-scale HTL plant processes aqueous biomass slurries (~20 % dry matter content) at temperatures up to 350°C and pressures around 200 bar, where water does not boil but remains in a liquid state. Under these conditions, biomass is converted into a crude bio-oil, which is separated from the process water behind the reactor.

Pilot plant for continuous HTL conversion of various organic feedstock.
Pilot plant for continuous HTL conversion of various organic feedstock.
(Source: Aarhus University)

In a second step, the HTL biocrude is upgraded to transportation fuel products via catalytic treatment with hydrogen at high temperature and pressure (hydrotreating). Thereby, oxygen and nitrogen are removed from the biocrude, which is in turn converted into a mixture of hydrocarbons. Distillation of the upgraded HTL biocrudes yields drop-in capable fuels in the gasoline, kerosene and diesel range.

Laboratory demonstration of key process steps by European consortium

Within the EU-project Hyflexfuel all key steps along a HTL fuel production chain are investigated at the premises of several European research institutions and companies. The potential availability of residues and waste streams across Europe is analyzed by DBFZ, the German institute for biomass research, using a geospatial approach.

Subscribe to the newsletter now

Don't Miss out on Our Best Content

By clicking on „Subscribe to Newsletter“ I agree to the processing and use of my data according to the consent form (please expand for details) and accept the Terms of Use. For more information, please see our Privacy Policy.

Unfold for details of your consent

Aarhus University further develops and optimizes HTL conversion at lab-scale and transfers the results to a pilot-scale continuous HTL plant, which also produced all samples for the downstream processes. Aalborg University, supported by Haldor Topsøe (Denmark), implemented the upgrading of various biocrudes to transportation fuels via catalytic hydrotreatment, while Eni (Italy) investigated the perspective of co-processing HTL biocrudes in conventional crude oil refineries.

HTL biocrude is extracted from the pilot plant.
HTL biocrude is extracted from the pilot plant.
(Source: Aarhus University)

Solid particles and process waters, which also evolve during HTL conversion, contain a significant fraction of the carbon and the nutrients from the initial biomass. Two options to produce biogas from the organics in these process waters are investigated by Paul Scherrer Institute (Switzerland), via catalytic hydrothermal gasification on their Energy System Integration Platform and by OWS (Belgium), via anaerobic digestion.

The recovery of phosphorus is particularly important for the HTL of sewage sludge in order to close nutrient cycles. The University of Hohenheim (Germany) has demonstrated the precipitation of struvite, a fertilizer product, from HTL solids and process waters. Bauhaus Luftfahrt coordinates the project and analyses the economic and environmental impact of HTL fuel production. Arttic Innovation (Germany) serves as a project management partner and supports dissemination activities.

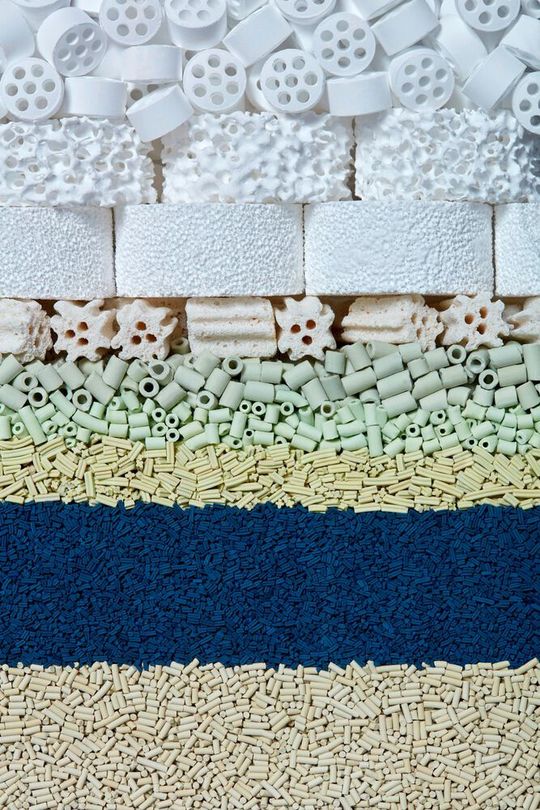

Commercial hydroprocessing catalysts for catalytic upgrading.
Commercial hydroprocessing catalysts for catalytic upgrading.
(Source: Haldor Topsoe)

Towards an approval of HTL kerosene for civil aviation

So far, seven alternative fuel production pathways have been approved as a blend component for civil aviation by the ASTM D-7566 specification. The Hyflexfuel consortium prepares the approval of HTL kerosene in collaboration with key partners in Europe and the US.

Kerosene samples from the Hyflexfuel project were analyzed by the H2020 project Jetscreen (coordinated by DLR, Germany) and the University of Dayton. The results show that all basic physicochemical properties of jet fuel, such as energy density or cold flow properties are already met, while the concentration of specific trace components needs to be further reduced to comply with stringent jet fuel specifications.
