The automation on a Domina tablet press is a step ahead of other machines as it helps to maximize production and minimize errors. The article elaborates on how Ima Active applies machine learning to set-up a machine automatically, allowing product quality and production efficiency to be of the highest standard and guaranteeing a quick return on customer investment.

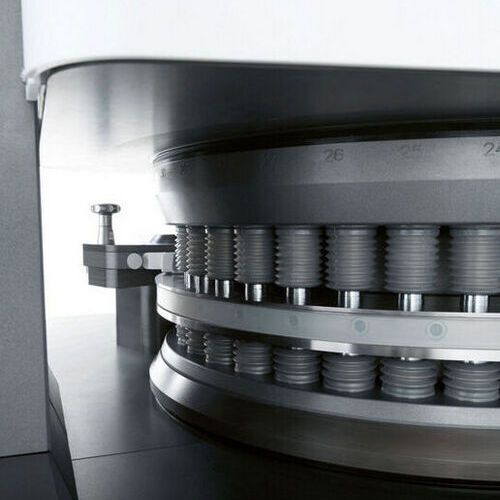

An automatic calibration autoregulation function has been introduced for Ima Active's new Domina tableting machine.
An automatic calibration autoregulation function has been introduced for Ima Active's new Domina tableting machine.
(Source: Ima Active)

Modern rotary tableting machines are capable of generating high throughput with excellent product quality and stability, and rapid outfitting when switching from one production run to another. However, reaching these objectives is a complex challenge: the tablet's weight, hardness and other characteristics depend on a number of settings that the tableting machine offers (feeding, dosing, compression, etc.), which must be set according to the required product and production speed, in addition to external factors such as temperature and humidity. These settings have to changed sometimes when one begins production runs with already tested recipes, let alone when testing new formulations. The skill and experience of the technician setting up the machine are fundamental for guaranteeing a good tableting machine operation. Within such a complex context, introducing machine learning algorithms into the machine software can simplify the operator's task, speed up production and improve product quality.

The idea: knowledge of processes in order to improve machine set-up

To calibrate a machine effectively, a good technician must work in the knowledge of what outcome will be achieved with any particular set-up. He or she must therefore have a “mental model” of what is happening in the machine. The more this mental model faithfully describes what actually happens, the more he or she will be able to set up the machine quickly and well. However, if the machine is entrusted to an inexperienced operator, i.e. one who has not built up a good mental model of the process happening in the machine, then he or she can only proceed by trial and error, wasting a lot of time and perhaps never finding a good solution.

The application: machine learning to automate machine set-up

Properly training a technician takes considerable time and investment for companies. However, if the machine was already programmed with some of the knowledge needed to make it run, the operator would need less knowledge and could learn how to use the machine more quickly. The key factor lies in shifting the knowledge about the process model from the technician to the machine, so that the tableting machine itself can make the right choices and set itself up in accordance with its present situation: this can be done by applying machine learning techniques.

Machine learning is a form of artificial intelligence that uses algorithms to create models capable of making predictions or decisions from data collected during tests on a system.

Classic examples of machine learning analyze data in a purely mathematical way, trying to find models and relationships between them without any consideration of the nature of the phenomenon in question. They do not try to find a model that analytically expresses the reality of what is happening, but only something that works in predicting outcomes. This approach can be used to tackle an array of issues, even highly complex ones, but it requires very large databases and high computational power as well as extensive testing to verify that the algorithm can make the right choices and correct itself by learning from its mistakes.

China’s Pharmaceutical Equipment Market - Current Status, Trends and Recommendations for Action

As China is emerging as one of the world’s fastest-growing markets for the consumption of pharmaceuticals, it also offers huge opportunities for the global equipment industry.

This 40-page report aims to help you gain a better understanding of the current China's pharmaceutical market regarding a series of pharmaceutical industry related policies. Based on results of the survey among users in the pharmaceutical industry and the expert interviews, it will also provide you with a forecast for the industry and recommendations for your future operating and investment in China.

However, by exploiting the knowledge of the physical phenomena being observed, it is possible to limit the field searched by machine learning algorithms to only the parameters that best represent the phenomenon according to a previously set model, chosen from those described in the scientific literature.

At Ima Active we have chosen to follow this route to introduce an automatic calibration autoregulation function on the new Domina tableting machine. The autoregulation mechanism keeps the weight of the tablets stable: by measuring the force required for compression, it detects any weight deviations and tries to correct them by adjusting the dosage. To understand the entity of the correction to be applied, it is essential to know the physical relationship in the machine between the dosage and the compression force.

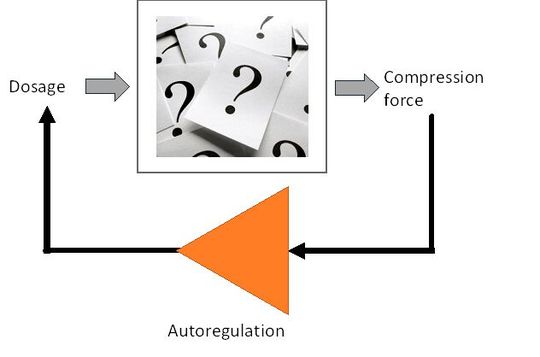

Figure 1: The autoregulation diagram.
Figure 1: The autoregulation diagram.
(Source: Ima Active)

An experienced technician can achieve this relationship during production set-up and then parameterize the autoregulation correctly. However, to someone with less experience, the parameters required to make this essential functionality work properly may seem mysterious and incomprehensible.

On the other hand, the machine control software knows exactly what autoregulation is for, what it influences and what outcomes can be expected by its implementation. It is therefore best placed to identify the relationship existing at a given moment between dosage and compression force. Using machine learning helps identify the characteristic compression curve for the product being used. Based on this information, the autoregulation needed to rapidly and precisely correct weight deviations can be set.

Subscribe to the newsletter now

Don't Miss out on Our Best Content

By clicking on „Subscribe to Newsletter“ I agree to the processing and use of my data according to the consent form (please expand for details) and accept the Terms of Use. For more information, please see our Privacy Policy.

Unfold for details of your consent

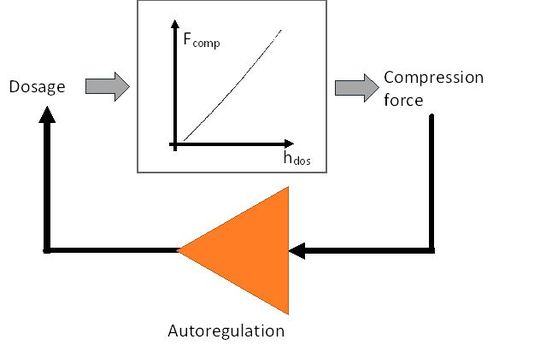

Figure 2: Autoregulation with knowledge of product characteristics.
Figure 2: Autoregulation with knowledge of product characteristics.
(Source: Ima Active)

The outcome: simpler machine start-up and more stable production

Applying machine learning to autoregulation considerably simplifies tableting machine set-up, in terms of both time and outcomes: the technician has fewer parameters to set before starting production, thereby automatically setting a calibration that is not empirical but “physically sensible” and optimal, capable of improving production stability.

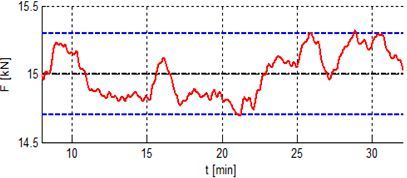

Figure 3: Compression force during a production run with autoregulation set by the operator.
Figure 3: Compression force during a production run with autoregulation set by the operator.
(Source: Ima Active)

Figure 3: Compression force during a production run with autoregulation set by the operator

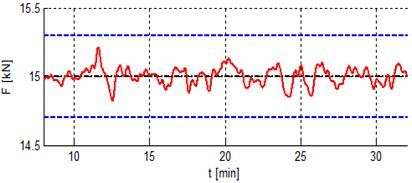

Figure 4: Compression force during a production run with autoregulation set by machine learning.
Figure 4: Compression force during a production run with autoregulation set by machine learning.
(Source: Ima Active)

Figure 4: Compression force during a production run with autoregulation set by machine learning.

The future: increasingly smart and simple machines

The project outlined in this article is just one example of the work that the Ima Active division is exploring in the application of machine learning to its machines. The challenge of offering customers products that not only feature increasingly complex functionalities but are also simpler to use can be overcome solely by giving the machine the necessary knowledge to carry out more tasks autonomously. There is a wealth of possibilities to be explored in this new field and we can be certain that over the coming years, developments made in machine learning will completely change the human-machine relationship, giving a whole new meaning to the concept of automation.
