Bulk Material Handling System For Highly Fragile Products

Editor: Manja Wühr

A precision bulk material handling system — developed by National Bulk Equipment — moves highly fragile product at a rate of 12 000 pounds per hour while also reducing finished product reject rate.

Related Companies

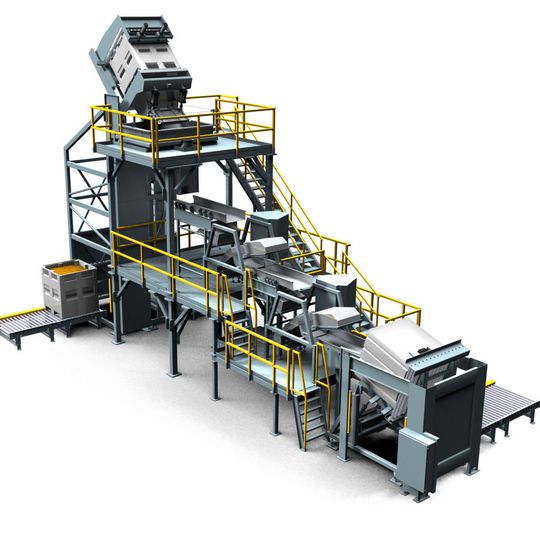

Precision Bulk Material Handling System moves highly fragile product at a rate of 12,000 pounds per hour.
Precision Bulk Material Handling System moves highly fragile product at a rate of 12,000 pounds per hour.
(Source: NBE)

National Bulk Equipment (NBE) has developed a process solution for moving highly fragile product through multiple process operations into bulk storage for temporary holding prior to final packaging. At a process rate of 12 000 pounds per hour, bulk totes of the product are nested into a lift carriage; the tote is sealed to a custom-designed discharge hood. The tote is vertically conveyed, using 1-1/2 inch, solid 304 stainless steel track and cam rollers, to a 23-foot discharge height. During tilting of the tote, optical sensors ensure a maximum product discharge drop distance of no more than 5 inches throughout the entire 150 º rotation. Additional material handling occurs as three stages of vibratory conveyor move the highly fragile product through two stages of high-speed image processing and sorting to ensure the material maintains its original characteristics throughout processing.

The finish-processed product is then moved into a storage tote using a reverse-tilt fill method to, again, ensure the fragile product drop does not exceed 5 inches during filling. The final take-away conveyor section includes an integrated, NTEP-certified weigh system to ensure the filled tote weight is accurate to +/-0.1 % of the tote’s 4000-pound total capacity.

Conveyor and container routing is directed from a single, menu-driven HMI designed and built by NBE. The company's automation expertise integrated the system-wide control, communication, monitoring, and data reporting to the facility’s central control system architecture. The manufacturer integrated automation and performance-proven construction increased material processing rates while reducing material reject rates.
