New Composite CO2 Sensor A Sensitive Material: New Polymer Enables Revolutionary CO2–Sensors

| Author / Editor: Fabio Bergamin/ETH Zurich / Dominik Stephan

A new material changes its conductivity depending on the concentration of CO2 in the environment. The researchers who developed it have utilized the material to produce a miniature, simply constructed sensor.

Related Company

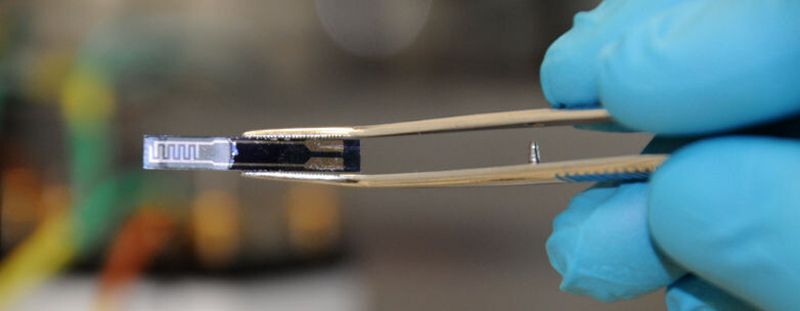

ETH researchers’ miniature CO2 sensor: chip with a thin layer of the polymer-nanoparticle composite.
ETH researchers’ miniature CO2 sensor: chip with a thin layer of the polymer-nanoparticle composite.
(Picture: Fabio Bergamin / ETH Zurich)

Material scientists at ETH Zurich and the Max Planck Institute of Colloids and Interfaces in Potsdam have developed a new type of sensor that can measure carbon dioxide (CO2). Compared with existing sensors, it is much smaller, has a simpler construction, requires considerably less energy and has an entirely different functional principle. The new sensor consists of a recently developed composite material that interacts with CO2 molecules and changes its conductivity depending on the concentration of CO2 in the environment. ETH scientists have created a sensor chip with this material that enables them to determine CO2 concentration with a simple measurement of electrical resistance.

The basis of the composite material is a chain-like macromolecule (polymer) made up of salts called ionic liquids, which are liquid and conductive at room temperature. The name of the polymers is slightly misleading as they are called «poly(ionic liquid)s» (PIL), although they are solid rather than liquid.

Unexpected Properties: Why PIL Has Much to Offer

Scientists worldwide are currently investigating these PIL for use in different applications, such as batteries and CO2 storage. From their work it is known that PIL can adsorb CO2. “We asked ourselves if we could exploit this property to obtain information on the concentration of CO2 in the air and thereby develop a new type of gas sensor,” says Christoph Willa, doctoral student at the Laboratory for Multifunctional Materials.

Willa and Dorota Koziej, a team leader in the laboratory, eventually succeeded by mixing the polymers with specific inorganic nanoparticles that also interact with CO2. By experimenting with these materials, the scientists were able to produce the composite. “Separately, neither the polymer nor the nanoparticles conduct electricity,” says Willa. “But when we combined them in a certain ratio, their conductivity increased rapidly.”

Chemical changes in the material

Chemoresistive at Room Temperature

It was not only this that astonished the scientists. They were also surprised that the conductivity of the composite material at room temperature is CO2-dependent. “Until now, chemoresistive materials have displayed these properties only at a temperature of several hundred degrees Celsius,” explains Koziej. Thus, existing CO2 sensors made from chemoresistive materials had to be heated to a high operating temperature. With the new composite material, this is not necessary, which facilitates its application significantly.
