Actuator Adjustment

Simplify Position Adjustments

| Editor: Wolfgang Ernhofer

Embedded within the Auma actuator, the new EWG electronic position transmitter converts the valve position into a standardised 0/4 – 20 mA signal for remote position indication.
Gallery: 1 image

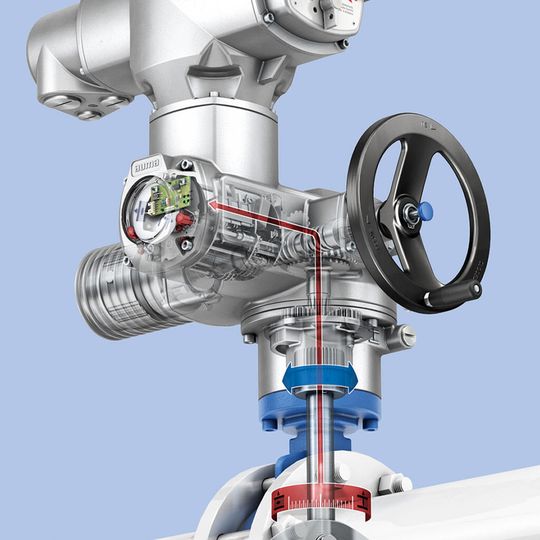

Embedded within the Auma actuator, the new EWG electronic position transmitter converts the valve position into a standardised 0/4 – 20 mA signal for remote position indication. (Picture: Auma)

A new electronic position transmitter designed to simplify end position adjustments for actuators has been developed by Auma. The EWG is compatible with its predecessor, the RWG, which ensures rapid replacements and retrofits.

Advantages provided by the EWG include continuous recording of the valve’s current position, and transmission as an analogue 0 – 20 mA or 4 – 20 mA signal to the control system. Inverse operation is also possible. End position adjustment is simple and straightforward, as tools are not required.

Valve position detection is contactless and avoids wear. Should a power failure occur, the EWG reliably recognises the current valve position, even if the device has been operated via the handwheel during the outage period. Once power supply is restored, a position signal is issued immediately, without the need for renewed setting or reference operation, and battery back-up is not required.

Embedded within the electromechanical control unit, the EWG suits all Auma generation .2 actuators and their predecessors. Supported products include SA multi-turn actuators, SQ and SG part-turn actuators plus explosion-proof versions such as SAEx, SQEx and SGExC actuators.
