Quaternary Diaphragm Pump New Multiple-Use Pump Ideal for Biopharma Applications

Editor: Ahlam Rais

Quattroflow has launched its latest quaternary diaphragm pump – QF5k for biopharma applications. The new diaphragm pump boasts of a maximum flow rate of 6,000 lph and also offers critical design enhancements.

Related Companies

Available in four different drive versions, QF5k pumps were developed to meet a wide range of process requirements – from integration into fully automated systems to stand-alone applications that require their own pump controller.

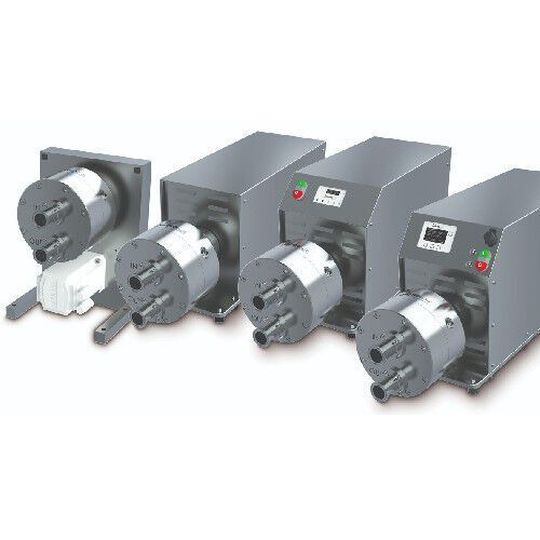

Available in four different drive versions, QF5k pumps were developed to meet a wide range of process requirements – from integration into fully automated systems to stand-alone applications that require their own pump controller.
(Source: Quattroflow)

Quattroflow has announced that it has extended its multiple-use product line of quaternary (four-piston) diaphragm pumps with the introduction of the new QF5k. Incorporating a variety of critical design enhancements and offering a maximum flow rate of 6,000 lph, the new diaphragm pump is ideally suited for demanding biopharma applications such as chromatography, TFF, virus filtration, sterile filtration and depth filtration.

The multiple-use pumps excel in biopharma applications thanks to an industry-leading design featuring pump chambers that provide drainability to maximize product recovery while significantly improving venting to remove entrapped air during priming, states the company.

Available in four different drive versions, the pumps were developed to meet a wide range of process requirements – from integration into fully automated systems to stand-alone applications that require their own pump controller.

Additional features and benefits of the pump include a proportional and linear flow performance for optimal precision during flow control; 120:1 turndown ratio; high flow stability even at low flow rates; low-pulsation characteristics; risk-free dry running; and clean-in-place (CIP)/steam-in-place (SIP) and autoclave capabilities. The QF5k model can also be integrated with the new Q-Control Integrated Pump Controller to provide users with automated control over their pump operations, adds the firm.
