Automation New Measurement System for Perfectly Sealed Map Packaging

Editor: Ahlam Rais

With Leakcheck, GEA is launching a new in-line measurement system capable of checking seal and package integrity on all forms of modified atmosphere packs contactless. This guarantees the protective function and the quality of the food packaging for goods in perfect condition.

Related Vendors

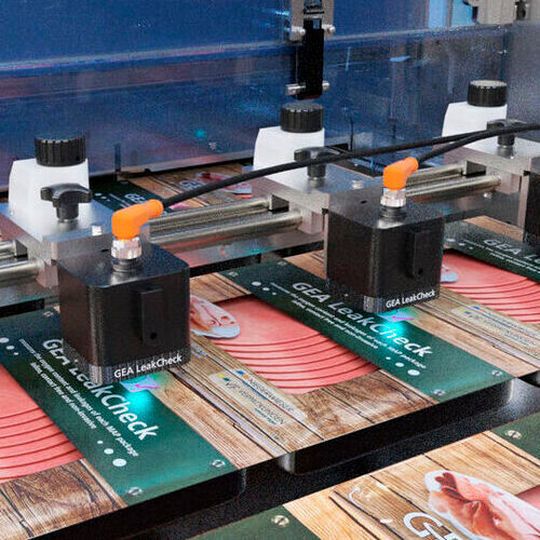

GEA Leakcheck sensors measure the oxygen content of the modified atmosphere packs.
GEA Leakcheck sensors measure the oxygen content of the modified atmosphere packs.
(Source: GEA)

First came GEA’s tried-and-trusted Oxycheck quality control system, whose contactless, non-invasive oxygen content measuring system has been verifying every modified atmosphere packs (Map) since 2017. Based on that system, the GEA Leakcheck now uses an in-line process on the GEA thermoformer to test the seal and package integrity on each individual package. The test procedure comprises three steps.

First, the residual oxygen content in each package is measured with a fluorescent sensor spot printed on the inside of the top film. Optical sensors mounted on the thermoformer project light onto the sensor spot, gauging the wavelength of the light emitted by the dye to accurately determine the oxygen content. This step alone significantly reduces the risk of defective packaging with excessively high residual oxygen levels, states the company.

Next, packages are subjected to overpressure and underpressure in a stress unit before a second contactless measurement is taken. If the new result differs from the first, the package seal is broken. Using the GEA Combipick, for instance, the leaky package is automatically detected and accurately removed on exiting the packaging machine. This method ensures that even the smallest leaks are detected, adds the firm.

In order to boost food processing productivity, the industry is increasingly focusing on automation. The aim is to achieve a consistent or even enhanced product quality. Thanks to the new in-line measurement system, the two key factors for ensuring food safety – residual oxygen content and seal integrity – can now be continuously recorded and monitored on an end-to-end basis. Process errors are rapidly detected and the delivery of faulty packaging is virtually zero, mentions the firm.

With the new measurement system, all units leaving the packaging machine are tested non-invasively. According to the company, since the measuring techniques are non-invasive, neither the packaging material nor the contents are wasted. Besides efficiency and sustainability, the upshot is that practically no defective packaging reaches the market.

Both systems are offered as optional extras with GEA’s Powerpak or Powerpak Plus thermoformers.
