New Electromagnetic Flowmeter for Conductive Liquids

Measurement and Sensors New Electromagnetic Flowmeter for Conductive Liquids

2025-03-17 Source: Press release Jumo 2 min Reading Time

Related Vendors

JUMO GmbH & Co. KG


TURCK GmbH

Anton Paar GmbH

ProMinent GmbH

Flow is one of the standard measurands in many different industries. As a result, many processes can be implemented depending on the applied measurement medium, the required accuracy, and the process conditions.

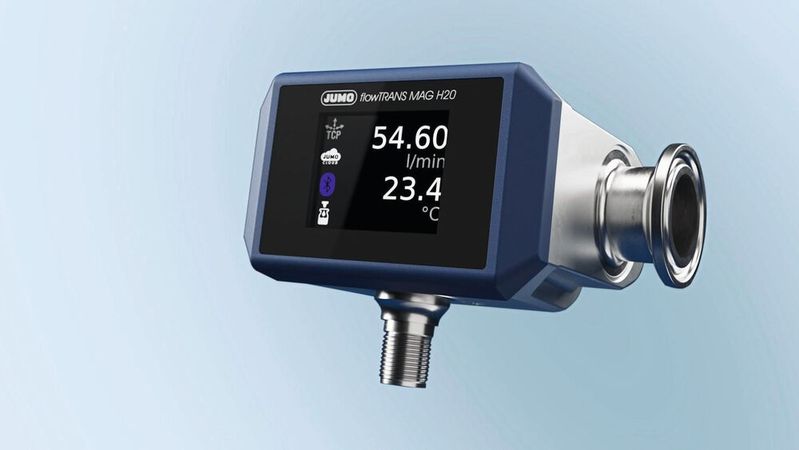

The Flowtrans Mag H20 measures conductive media with high precision − even drop-by-drop.(Bild: Jumo) — The Flowtrans Mag H20 measures conductive media with high precision − even drop-by-drop.
(Bild: Jumo)

Measuring conductive media, however, is no easy task. For this purpose, the new Flowtrans Mag H20 by Jumo offers a reliable measurement plus flexibility for a wide range of processes. In addition to the flow measurement, the temperature is also measured. An innovative Single Pair Ethernet (SPE) interface with PoDL (Modbus TCP, Jumo Cloud Connector), enables continuous IP communication from the field level to the automation level, while the device is also available with IO-Link and a classic analog output. This variety of output signals ensures maximum flexibility and easy integration into a wide range of automation processes. Jumo already offers products for flow measurement that operate via differential pressure, the calorimetric measurement method, or the magnetic-inductive measuring principle. The new device uses the magnetic-inductive measuring principle and stands out with its high degree of accuracy.

Its accuracy is +/- 0.5 percent of the measured value. An additional temperature sensor is already integrated. Due to such factors as its metal case and a Tri-Clamp process connection in nominal widths from DN 06 to DN 25, it can be used especially well in food-related areas along with other industries for which a G external thread is available. The nominal pressures can be up to PN 16 and the medium temperature up to 90° C so that it can also be cleaned using CIP. Its IP65/IP67 protection type makes the device a flexible partner for a wide variety of processes.

The HMI of the device consists of a TFT display on which 2 process values including the status and info messages are displayed. This device is configured locally via the Bluetooth interface and the manufacturer's Smartconnect app. The SPE with PoDL interface uses the Modbus TCP protocol, which enables a continuous IP communication from the sensor to the automation system. An integrated connector simplifies the connection to the Jumo-Cloud. The variant with the digital technology “IO-Link”, via which process data as well as configuration and diagnostic data can be transmitted, makes the Flowtrans Mag H20 a real communication all-rounder: The new sensor can be used, for example, in the food industry and in auxiliary circuits in other industries. This way, the application area ranges from small and medium-sized dosing stations to ancillary facilities and pump construction.

(ID:50357316)
