Pumps Digital controlled dosing pumps

Editor: Gabriele Ilg

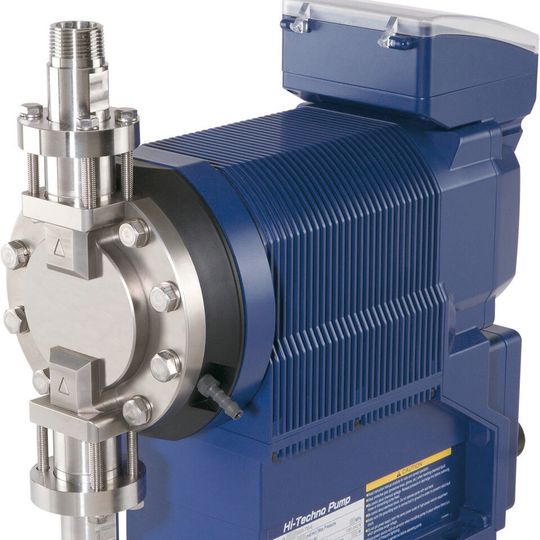

Iwaki offers with the models IX-D150 and IX-D300 further two digital controlled dosing pumps with brushless DC motor for a setting range of 1:750.

Related Companies

One highlight of the IX is a quit simple calibration mode with only a few steps.
One highlight of the IX is a quit simple calibration mode with only a few steps.
(Source: Iwaki)

All pumps are working with a microprocessor controlled suction and discharge stroke with a constant stroke length of 100%. The setting of the flow value would be adjusted only by the stroke frequency and the variable stroke speed.

The constant full stroke length should guarantie a constant dead volume over the complete dosing range. These drive concept allows a low pulsation feeding corresponding with an accuracy of +/- 1% for the hole performance range. A special suction mode for viscose and sensitive liquids is available, also to provide cavitation.

There are different possibilities to control the pump, as of manual, batch, pulse, time, analog and process data. All adjustments would be done through the user friendly multi language LCD display. The most important data, like volume, operation time, strokes etc. can easily displayed from the menu any time.
