Capsule Filler in Containment-Version

| Editor: Gabriele Ilg

Thanks to the know-how and experience gained on the sophisticated and demanding technological field of capsule fillers, a few years ago MG2 engaged itself in transferring its know-how to different areas of the pharmaceutical packaging world.
Thanks to the know-how and experience gained on the sophisticated and demanding technological field of capsule fillers, a few years ago MG2 engaged itself in transferring its know-how to different areas of the pharmaceutical packaging world. (Source: MG2)

MG2 introduces two machines. Selecta/W is the new check-weigher and sorting machine for tablets and capsules, which can check up to 500.000 units/hour.

It can be directly connected to the production machine (tablet press or capsule filler) or used as a stand-alone unit, with automatic or manual load, for small batches. Size change-over is performed by replacing two sets of parts, which can be easily disassembled.

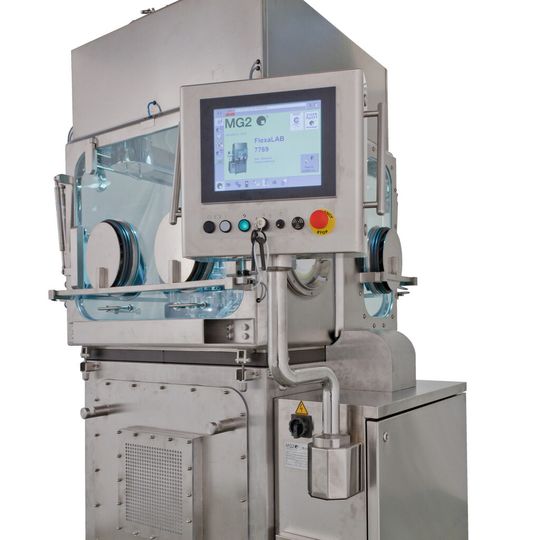

The machine selects conforming and non-conforming units through a fail-safe system, thanks to sensors located in the critical phases of the process. Flexalab for containment is the evolution of the well-known capsule filler for laboratories.

The containment system features a particular liftable isolator concept, which allows the machine to keep its peculiarity to change different dosing units. The system allows the machine to satisfy the highest containment class, OEL5, guaranteeing a concentration of active substance lower than 1 µg per cubic meter. The containment version can be equipped with a Wet-in-Place system.

Additional Information

Capsule Filler in Containment-Version
