Ultra-Pure Water Analyzer Sodium Analyzer Offers Accurate Measurement for High Purity Water

The NA6 Sodium Analyzer from Electro Chemical Devices (ECD) is equipped with an advanced glass electrode sensor that measures sodium in water to the parts per billion, parts per million or milligram per liter levels and is used across various industries such as pharmaceuticals, food and beverage, H2 electrolysis, steam turbine and boiler water, electronics, refineries, etc.

Related Vendors

Elementar Analysensysteme GmbH

Anton Paar GmbH

ProMinent GmbH

ECD – Electro-Chemical Devices

Process and plant engineers requiring ultra-pure or high purity water for a wide range of ingredient and rinsing or washing or feed water applications ranging from pharmaceuticals to food/beverage to green hydrogen (H2) electric power will find that the NA6 Sodium Analyzer from Electro Chemical Devices (ECD) sets the standard in providing accurate measurement, reliability and ease of use, states the company.

Many consumer products and industrial processes rely on ultra-pure or high-purity water. They include pharmaceutical water for injection (WIF), beer or other beverages and food products where water quality affects taste, as well as the sanitary rinsing of clean-in-place (CIP) equipment. Other industrial applications include H2 electrolysis production for green electric power, corrosion prevention in steam turbines for conventional electric power generation, steam boilers in refineries, as well as semiconductor fabrication, glass production and metal plating.

With an advanced glass electrode sensor that measures sodium in water to the parts per billion (ppb), parts per million (ppm) or milligram per liter (mg/l) levels, the Analyzer is the flexible water quality assurance tool. The sodium sensor’s measurement range of 0.1 to 10 ppb is based on the proven accuracy of the firm’s sodium glass electrode sensor for the online potentiometric detection of low ppb traces of sodium, adds the company.

When exposed to raw process or treated process water, ECD’s sodium glass electrode sensor produces an electronic signal potential proportional to the log of the sodium concentration. The sample is exposed to a reagent vapor, which raises the sample pH to 11 to eliminate any pH or ammonium interferences that would affect measurement accuracy. Highly reliable too, reproducibility is ±0.2 ppb or 5 %, whichever is greater at constant temperature, shares the firm.

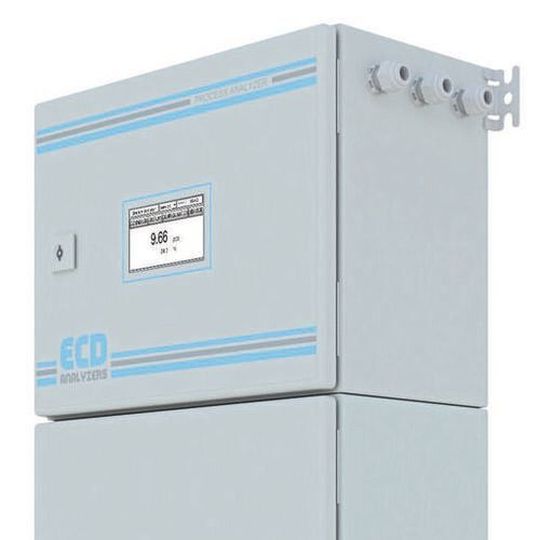

The Analyzer features a tri-compartment design for reliability and safety. The electronics and user interface display are in the top compartment, with the calibration solutions for autocal in the middle compartment and the wet sample housed in the bottom of the unit. The electronics are always dry and safe from moisture for superior reliability.

The Analyzer features a dual-function design for maximum user flexibility by plant technicians. It features a T90 180 sec (0 to 10 ppb) delay time when in continuous operation. The analyzer’s ‘grab sample’ capability also enables the unattended analysis of manually collected samples. The results of external samples are stored in the analyzer’s data logger, which includes time and date stamping information for history logging.

For easy installation, the Analyzer is ready to go right out of the box. It takes a single technician less than 30 minutes with no special training or tools to get the NA6 up and running. All that needs to be done is connect the power, the sample line and the reagent lines. The analyzer is then fully operational, mentions the company.

The analyzer offers a choice of a manual 1-2 point calibration mode or a 2-point automatic calibration mode. The 2-point automated calibration mode minimizes operator intervention and ensures accurate results are obtained. Free selectable calibration intervals are available too. The results of the last ten calibrations are stored in the analyzer’s internal data logger.

With its built-in colour touchscreen user interface with multi-lingual capability, the Analyzer is highly intuitive. It displays measured values and status information in a large easy-to-read format. The design provides full access to menus and functions. The built-in data logger comes with USB download capability, concludes the firm.
