Automation Proximity Switch for Ex Zone 0/20

| Editor: Ahlam Rais

Introducing the Igex20a inductive proximity switch, EGE provides a very compact sensor for zone 0/20 hazardous areas that can be used without additional amplifiers.

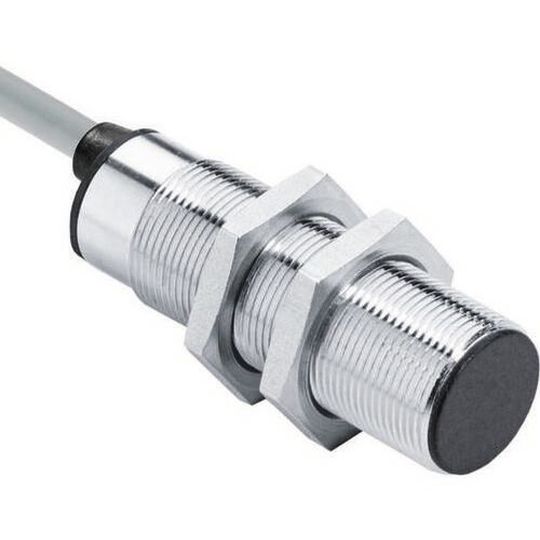

EGE supplies Atex- and Iec Ex-compliant inductive proximity switches for zone 0/20 gas and dust hazardous areas.
EGE supplies Atex- and Iec Ex-compliant inductive proximity switches for zone 0/20 gas and dust hazardous areas.
(Source: EGE-Elektronik Spezial-Sensoren)

The proximity switch is certified according to Atex and Iec Ex. The Iec Ex certification simplifies worldwide use of the sensors. Certified for use in Ex zones 0 and 20, the proximity switches can be employed in hazardous areas with gas or dust atmospheres, for example in gas stations and facilities with gas-conveying parts, states the firm. The switching function is indicated by an LED on the back of the device.

According to the company, the sensors are available in an M12, M18, or M30 design. Flush installation provided, the nominal switching distances are 2 mm, 5 mm, and 10 mm, depending on the design. The proximity switches are connected via a 2 m PUR cable. EGE supplies the sensors with different cable lengths on request.

(ID:45655554)
