Pumps Non–Metallic Pump Handles Acids, Caustics and Slurries

Editor: Dominik Stephan

The portable, non-metallic Flex-I-Liner rotary peristaltic pump from Vanton evacuates drums and totes containing acids, caustics, salts, chlorides and reagent grade chemicals, without corrosion or contamination – using a clever choice of materials...

Related Vendors

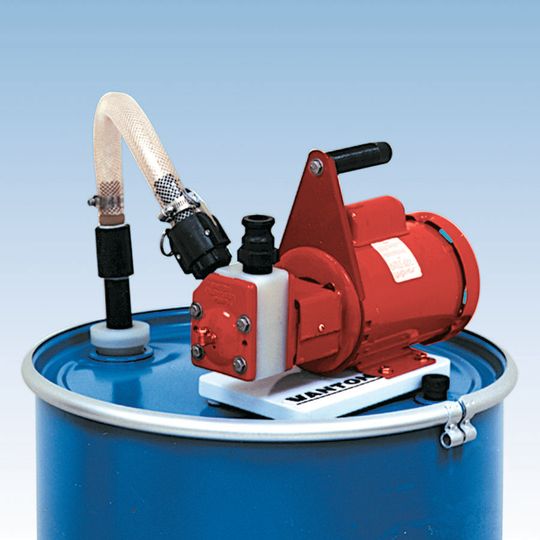

The Flex-I-Liner pump works at temperatures up to 121°C
The Flex-I-Liner pump works at temperatures up to 121°C
(Picture: Vanton)

The self-priming design has no seals to leak or valves to clog, and can run dry for extended periods without damage. Compact in size with integral handle, it fits on drum lids without protruding, and has sufficient lift characteristics to operate from the floor, skid, or stand. Only two non-metallic parts are in contact fluid: a thermoplastic body block, and an elastomeric flexible liner that can be easily replaced in the field.

The rigid body block is of solid polypropylene, UHMW polyethylene, or PTFE, and the molded flexible liner of natural rubber or elastomer plasstics, eliminating corrosion or contamination associated with metal pumps. The pump is suitable for flows from 1.25 to 151 litres/h and pressures up to 310 kPa.
