Software Metso Presents Free Online Valve Assembly Software

| Editor: Dominik Stephan

Metso releases the new Rapid Draw 3D Valve Model Generator, a free online automated valve assembly model generator that allows users to quickly create realistic, to-scale, 3D valve assemblies and export them to any CAD program for use in plant piping diagrams.

Related Companies

Metso puts a free, one-of-a-kind valve model generator on the cloud

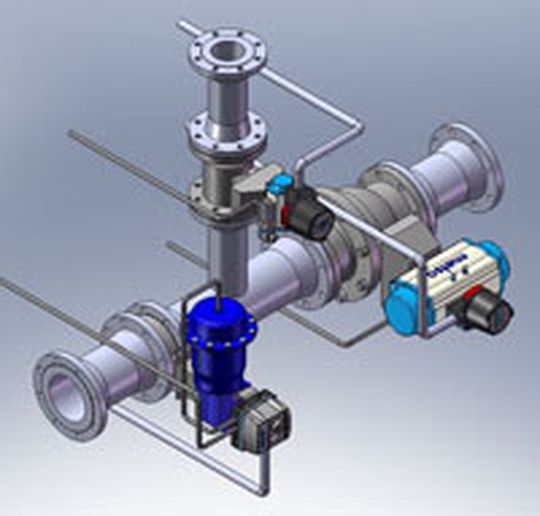

Metso puts a free, one-of-a-kind valve model generator on the cloud
(Picture: Metso )

Rapid Draw 3D allows the user to choose components from Metso's valve and actuator portfolio, displaying possible connections and accessories such as positioners, solenoids and others. The final step is selecting the appropriate file output based on the user's CAD program (PDF, AutoCAD, SolidWorks 2D, SolidWorks 3D, DXF, STEP, IGES, Parasolids, etc..) A realistic 3D rendering can then be downloaded from the Internet for import into the chosen CAD program. These 3D files stay on the RapidDraw3D server for 90 days so they can be modified and retrieved easily.

The programme can be accessed for free (after registration) on Metso's Rapid Draw 3D homepage.
