Launch of High-Purity Inline Straight Tube Ultrasonic Flow Meter

Flow Meters Launch of High-Purity Inline Straight Tube Ultrasonic Flow Meter

2025-12-26 Source: Press release Malema 1 min Reading Time

Related Vendors

PSG

Italvacuum, Srl

Anton Paar GmbH

ProMinent GmbH

Malema’s new M-2300 Series high-purity inline straight tube ultrasonic flow meter has been launched globally. The Series combines precise flow measurement with seamless integration and optimized space efficiency.

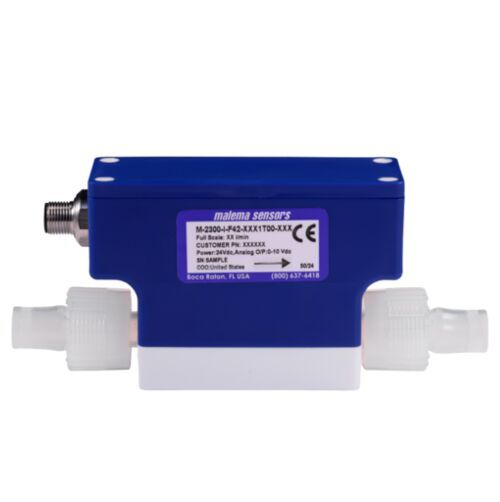

Malema has announced the global launch of the new Malema M-2300 Series High-Purity Inline Straight Tube Ultrasonic Flow Meter. (Source: Malema) — Malema has announced the global launch of the new Malema M-2300 Series High-Purity Inline Straight Tube Ultrasonic Flow Meter.
(Source: Malema)

Malema has announced the global launch of the new Malema M-2300 Series High-Purity Inline Straight Tube Ultrasonic Flow Meter. Engineered to overcome the demanding challenges of semiconductor applications, the M-2300 Series combines precise flow measurement with seamless integration and optimized space efficiency, mentions the firm.

Leveraging advanced digital signal processing (DSP) technology, the M-2300 Series integrates an inline ultrasonic flow sensor and electronics into a single compact unit. It features a straight-through PFA tube, delivering accurate and reliable metering while maintaining superior performance.

This innovative ultrasonic flow meter simplifies installation with reduced cabling while addressing the semiconductor industry's growing demand for compact, reliable solutions, explains the company.

The M-2300 Series is designed with sensors that provide flow measurement accuracy of ±1 % and repeatability of ±0.5 % with minimal pressure loss. PFA-wetted materials and a straight flow path with no moving parts ensure exceptional corrosion resistance while eliminating dead legs, obstructions or particle contamination. With its inline design and seamless integration that offers no pressure drop and no metering cutoff, the M-2300 is a superior alternative to vortex flow meter technology, opines the firm.

Available in 1/4", 3/8", and 1/2" tubes and fittings, the M-2300 Series is suitable for various semiconductor applications in minimal footprints, including CMP, cooling systems, ECD, electroless deposition, laser equipment, solar PV equipment, track tools, wet clean, wet process, and chemical distribution systems.

(ID:50667977)
